30mm PTFE Banded Piston With Shore Hardness With Steam Treatment Coating

Brand Name : XIAYI

Model Number : Φ30mm

Certification : IATF16949:2016

Place of Origin : China

MOQ : 1200pcs

Price : negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 30,000 pcs per month

Delivery Time : 10 working days after payment

Packaging Details : Packed in carton firstly and then reinforced with wooden case for outer packing

Product Name : banded Piston

Density of sinter piston : More than 6.5g/cm3

Material of bands : Fillled PTFE

Application : car shocks

Density of bands : 2.06-2.19 g/cm3

Outer diameter : 29.95-30.05 mm

Inner diameter : 8mm

coating : steam treatment

Contact Now

30mm PTFE banded piston with shore hardness 60 can stand high temperature used in shocks​

Specifications:

Physical performance for shock piston

tensile strength

More than 15MPa

elongation @ break

More than 200%

shore hardness

57 - 61

density

2.15 – 2.19 g/cm3

wear

Less than 50mg

friction coefficient

Less than 0.3

highest working temperature

260℃

Description:

Good seal steam treatment D30 multi-lip TFM banding Shock Piston with material of Hoganas powder

XIA YI is engaged in developing and manufacturing different kinds of shock absorber pistons powder

metallurgy based, with PTFE or TFM material banding outside, they have advantages of low friction, good

seal properties etc.

As a modern company orientated towards organic growth it is in our interest that there is a team-spirit,

that everyone is reliable and that we are all following the same targets. Our highly motivated and

competent team can be depended upon to pursue the utmost aim of the company which is "customer

satisfaction" at a consistently high quality.

We have different testing machines such as abrasion testing machine, tensile strength testing machine,

density tester, hardness testing machine and so on. We also design and develop a special testing

machine which test blow-off of banding piston.

The products have passed the Test center, Shang hai Plastic Research Institute. We have set up good

cooperative relationship with some big shock absorber factories home and abroad. Our mass production

piston types are: Φ20, Φ25, Φ27, Φ30, Φ31, Φ32, Φ35, Φ36, Φ40, Φ45, Φ50.

SPEC: D30.05XD8X11.5

1 ) Unique design for the fluid channels

2 ) Material: FC50.U3.60

3 ) Density is 6.0g/cm3

4 ) Steam treatment

Here is the physical property of PTFE bandings

Tensile strength ≥23N/mm2

Working temperature -80°C to 260°C

Friction coefficient (dry) ≤0.20

Hardness 57-62

Advantages for parts:

Superior hard chrome piston finish

Maximum safety and stability

Available for different types of vehicles

Customer own design available

Optimum corrosion resistance

Superior design and engineering

Applications:

Car or motorbike shock absorbers

Competitive Advantage:

XIAYI is a professional company which produces different size and design shock absorber pistons.

XIAYI has a complete set of testing equipment which can control the quality for the material.

Complex multi-level design

Flexile and convenient logistic service

Significant increase in lifetime

Standard material according to technical drawing

Can absorb most shake when driving

Increased seal durability

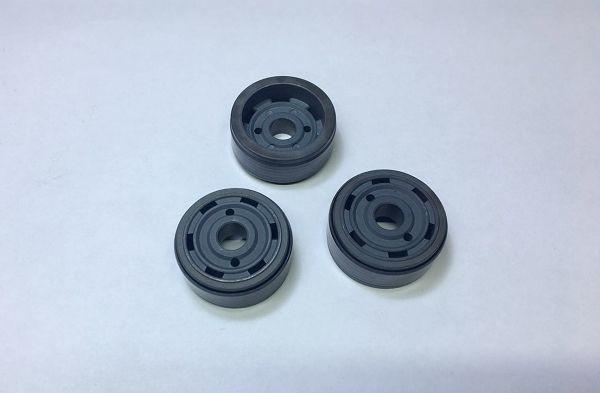

Picture show:

30mm PTFE Banded Piston With Shore Hardness With Steam Treatment Coating
